XC40-WSRX

XC40-WSRX Portable Dimmer Pack

(What discontinued products are comparable to this product?)

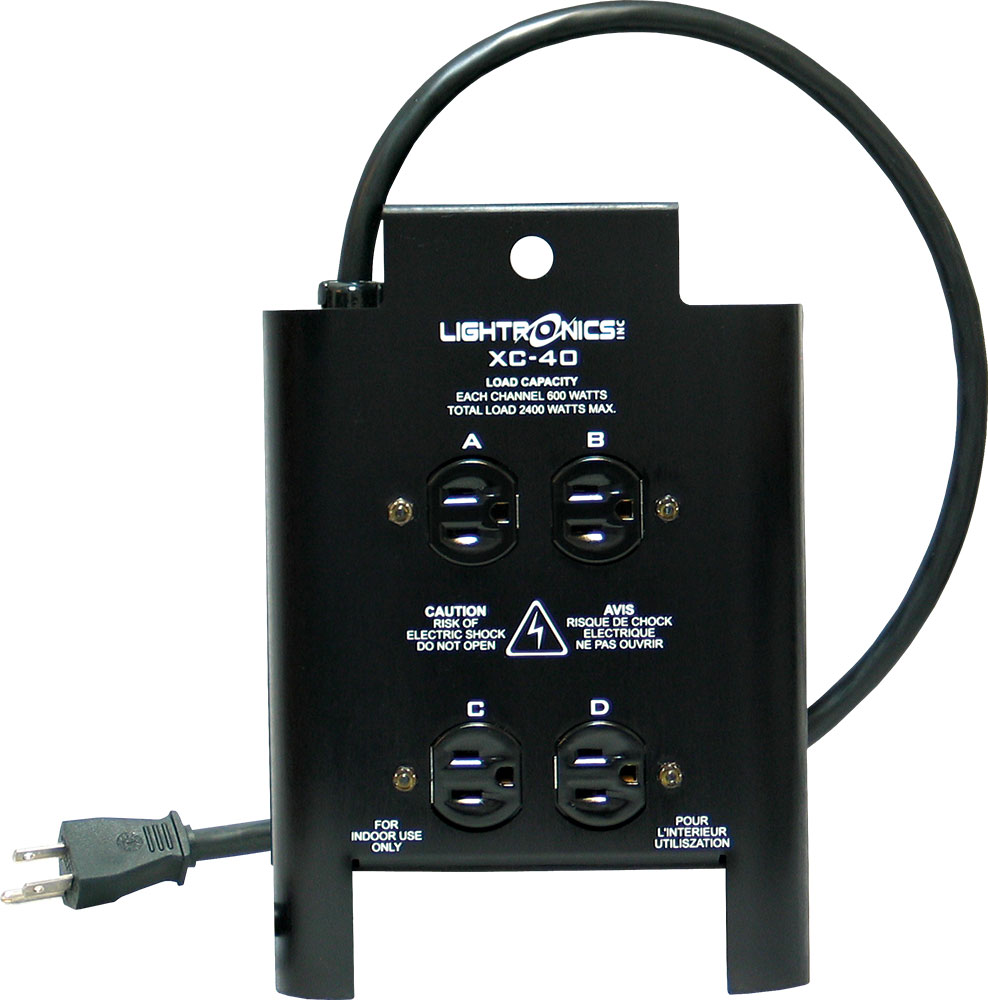

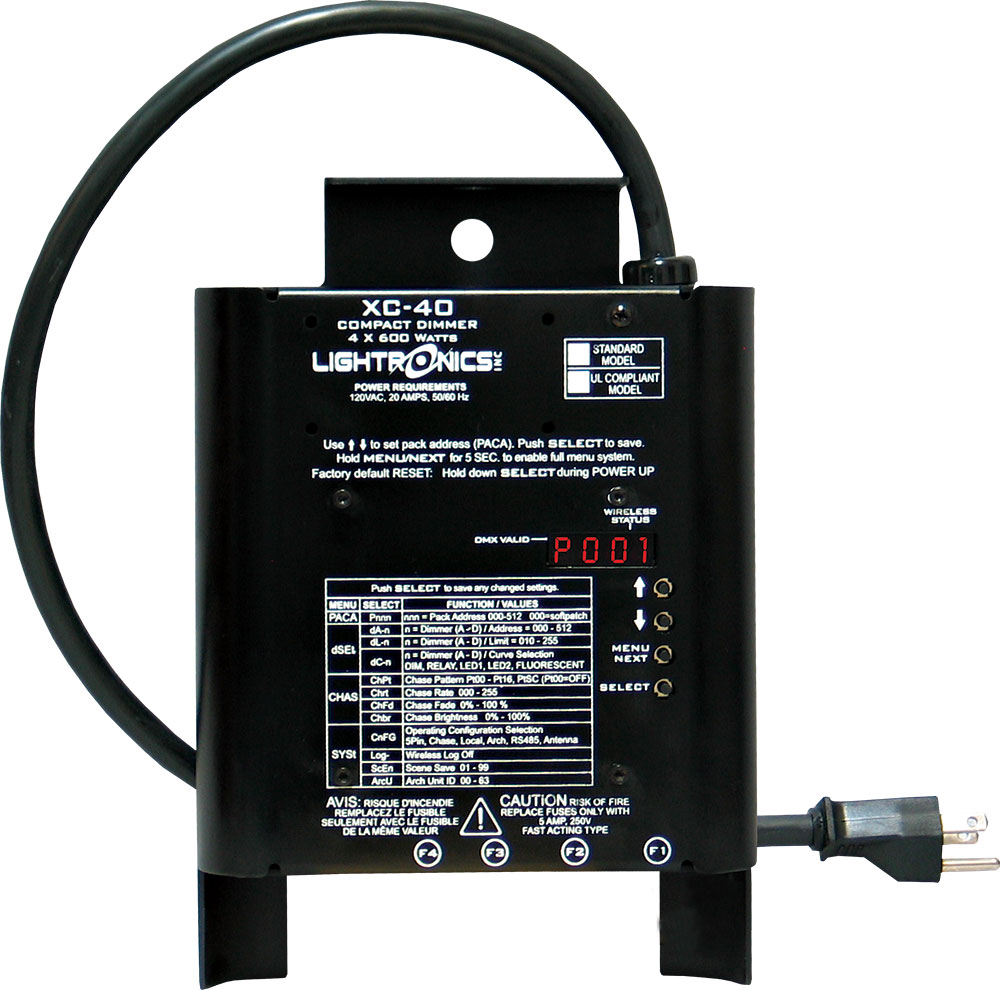

The Lightronics XC40-WSRX is the next generation 4-channel portable A/C dimmer packs with Wireless DMX Capability. Designed for DMX-512 operation, it allows for both Sequential Dip Switch Mapping, as well as local individual local channel mapping. Whether you need all channels to be controlled by one DMX address or if you need channels to have a designated dimming and non-dimming load control type, it is built for flexible, on-the-go use, it provides reliable control of connected lighting loads in temporary, compact, or mobile installations. The unit connects directly to a 120VAC power source and distributes dimmed or non-dimmed (relay type) output across four channels, allowing quick setup for portable lighting applications.

Key Features
 • 4 dimming channels, 600W per channel (2,400W total)
 • DMX-512 control with 5-pin XLR input/output
 • Wireless DMX Capability
 • Switchable non-dim (relay type) mode for compatible loads
 • 8 built-in chase patterns for stand-alone operation
 • Standard 120V Edison duplex power cord (3-prong wall outlet)
 • Standard 120V Edison output connectors for connected devices
 • 5 Amp fuses per channel for circuit protection
 • Individual channel mapping locally on unit or sequential DIP switch mapping for flexible DMX configuration
 • Compact, portable design for temporary installations or areas with limited space

Users can control lighting through a DMX-512 console or operate the unit independently using built-in chase patterns. This stand-alone capability makes it well suited for smaller setups where a full control system is not required, while DMX-512 compatibility allows seamless integration into larger lighting systems.

Integration into existing lighting systems is straightforward. The XC40 supports standard DMX-512 daisy-chain connections for multiple dimmer packs and can be configured for relay operation when controlling non-dimmable loads. This flexibility allows the unit to be used across a wide range of portable lighting applications.

Designed for dependable, portable operation, the XC40 delivers consistent dimming performance in a compact form factor. Its durable construction, flexible control options, and stand-alone functionality make it a practical solution for facilities and events requiring reliable, mobile lighting control.
