FC816

SKU FC816 Category Lighting Consoles

The FC816 is a compact, user-friendly lighting console designed for conventional systems with rotary channel control. It provides 16 rotary channels with support for 8 programmable scenes and 4 programmable chases, offering precise control over lighting sequences. MIDI control enables operation of scene selection, blackout, fade rate, chase rate, and chase off functions. The console supports LMX-128 protocol, allowing seamless integration with legacy lighting systems for flexible installation and operation.

Technical Documentation

Product documents coming soon.

Additional information

Weight	2.9 lbs
Dimensions	8.75 × 5.5 × 2 in
Channels	16
Communication Protocol	LMX-128

Product Details

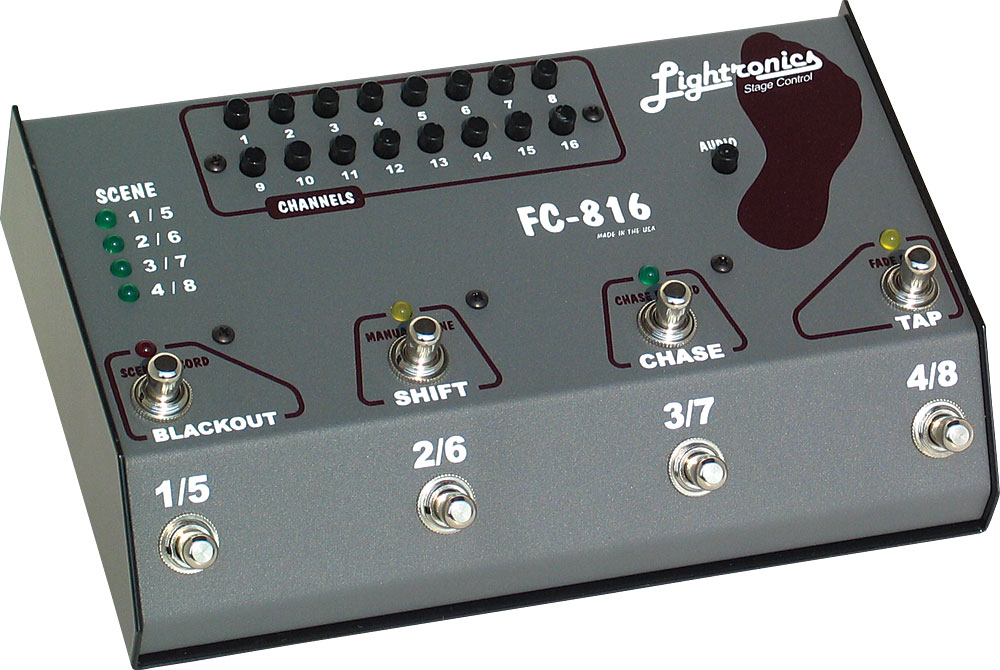

FC816 Foot Controlled Console

The Lightronics FC816 is a compact, foot-operated lighting control console designed for live performances, theaters, nightclubs, and other event spaces where hands-free operation and flexible scene control are essential. Its intuitive foot pedal interface allows performers and operators to manage lighting cues without interrupting their workflow.

Key Features

16 rotary control channels for precise dimming
8 programmable scenes plus 1 manual mode scene
4 user-defined chases with up to 14 steps each
LMX-128 multiplex protocol for seamless system integration

MIDI control including scene select, chase select, chase off, blackout, fade rate, and chase rate

Blackout function for instant scene darkening
Audio-sync capability for tempo-controlled chases
Nonvolatile memory retains scenes and chases when powered off
Compact steel chassis with durable construction, phantom powered from compatible dimmers

The FC816 enables operators to execute stored scenes, activate chases, and adjust fade and chase rates—all without using their hands. Chases can be advanced manually, via audio input, or triggered through MIDI commands, allowing dynamic and responsive lighting effects for live performances. Scene fade times and chase sequencing are fully adjustable to match the pace of the event.

Integration with LMX-128 multiplexed systems ensures compatibility with existing infrastructure, while the phantom-powered design keeps wiring minimal. Nonvolatile memory ensures all programming is retained, providing reliable operation for recurring events.

Built for portability, durability, and hands-free control, the FC816 is ideal for performers and technicians who need flexible, dependable lighting management during live productions.
