AR1202 Unity Architectural Lighting Dimmer
(Click here to see comparable discontinued Lightronics products and competitor products!)

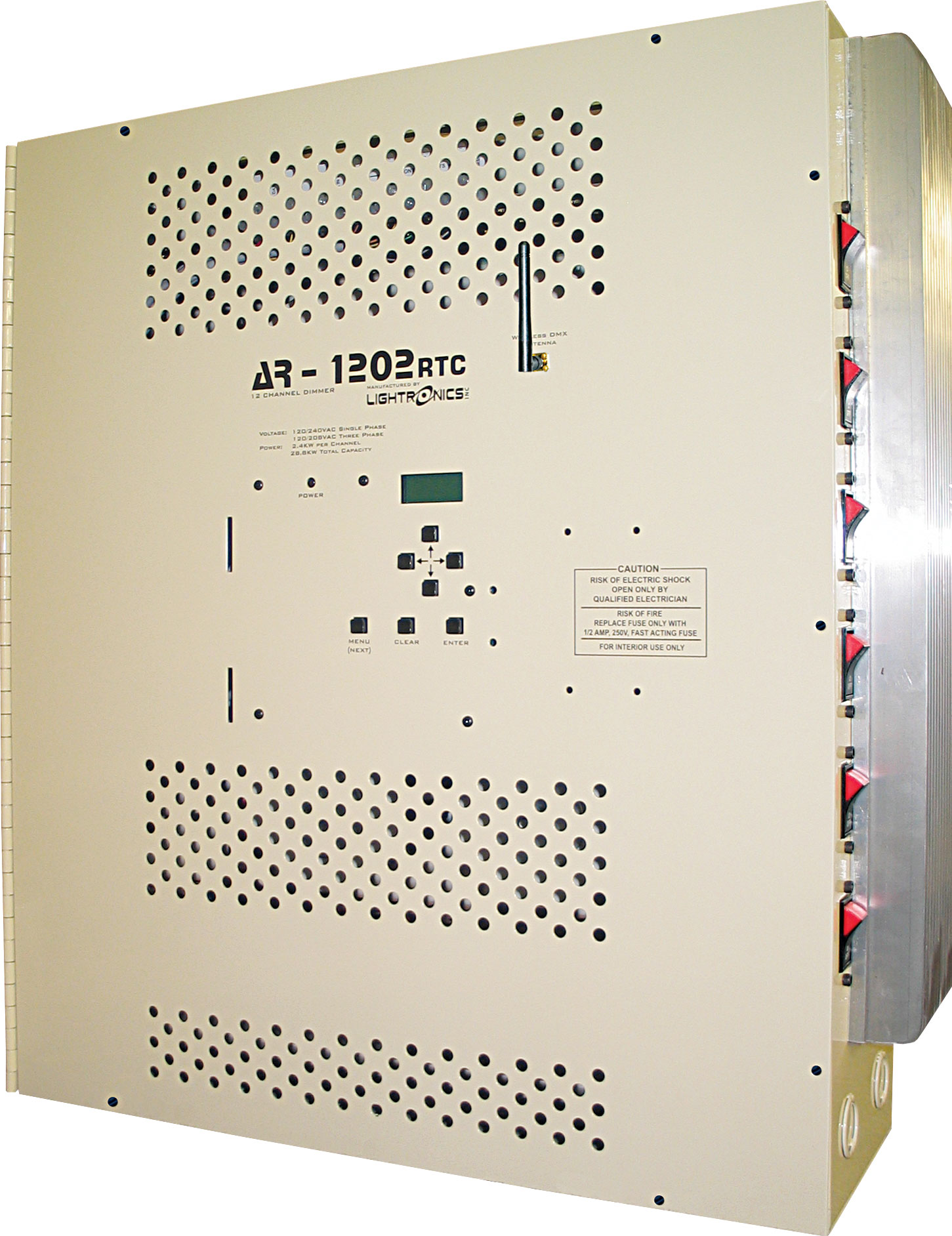

The Lightronics AR1202 is a 12-channel A/C dimmed architectural wall-mount dimmer system designed for DMX-512 operation and for integration into Lightronics Unity Architectural Lighting Control (LitNet) systems. Installed as a centralized dimming panel, it provides control of connected lighting loads through Unity Architectural remote stations, DMX-512 control input, or contact closures. The system supports simple “one-button” operation from wall stations while maintaining full programmable control for multi-zone architectural lighting applications.
Key Features
• 12 dimming channels, 2,400W per channel (28,800W total)
• Forward phase dimmed 120VAC output with both dimming and non-dimming TRIAC capability
• Compatible with Unity Architectural Lighting Control (LitNet) systems
• Supports Unity Architectural remote station control
• Supports DMX-512 control input
• Programmable for up to 100 preset lighting scenes (expandable to 255)
• Supports incandescent, halogen, fluorescent, and LED fixtures
• Expandable with dimmer modules for increased capacity
• Centralized wall-mount design for system control and distribution
Users can quickly recall preset lighting scenes while maintaining simple operation through Unity Architectural remote stations or DMX-512 input. This allows consistent, repeatable lighting control across multiple zones. In addition, the AR1202 can operate independently within the Unity Architectural (LitNet) system, allowing full lighting control without requiring a DMX console.
Integration into existing lighting systems is straightforward. The AR1202 supports Unity Architectural remote stations for simple preset control, while DMX-512 allows connection to broader lighting control systems. As a result, it can function as the core of a complete architectural lighting control system or as part of an expanded installation. The system is well suited for both new installations and retrofit applications where centralized control and scalable dimming capacity are required.
Designed for dependable, long-term operation, the AR1202 delivers consistent performance in architectural lighting environments. Its durable construction, flexible control options, and expandable architecture make it a practical solution for facilities requiring reliable, multi-zone lighting control with centralized management.
**DISCLAIMER**
Recommendations for comparable products are based on critical factors such as voltage, overall wattage, channels, output type, etc. It is rare to find an exact comparable to any product, so make sure to consult a qualified representative before making a purchase.
Comparable Products:
Leviton/NSI: N2408 Series Click Here For Data Sheet Click Here For User Manual
N2408-CD0 Commercial Dimmer Pack, 8 Channels, 2400 Watt/Channel, Microprocessor Controlled, Dual SCR, Toroidal Filters, Micro-Plex, DMX512, and 0-10 V Analog Inputs, UL/C-UL LISTED, 120V.
N2408-CD9 Commercial Dimmer Pack, 8 Channels, 2400 Watt/Channel, Microprocessor Controlled, Dual SCR, Toroidal Filters, Micro-Plex, DMX512, and 0-10 V Analog Inputs, UL/C-UL LISTED, 240V.
N2408-CR0 Commercial Relay Pack with 8 Channels, 2400 Watt/Channel, Microprocessor Controlled, Dual SCR, Micro-Plex, DMX512, 0-10V Analog Inputs, UL/C-UL LISTED, 120V.
N2408-CR9 Commercial Relay Pack with 8 Channels, 2400 Watt/Channel, Microprocessor Controlled, Dual SCR, Micro-Plex, DMX512, 0-10V Analog Inputs, UL/C-UL LISTED, 240V.
