AB0302N

AB0302N Unity Architectural Ballast Driver

(What discontinued products are comparable to this product?)

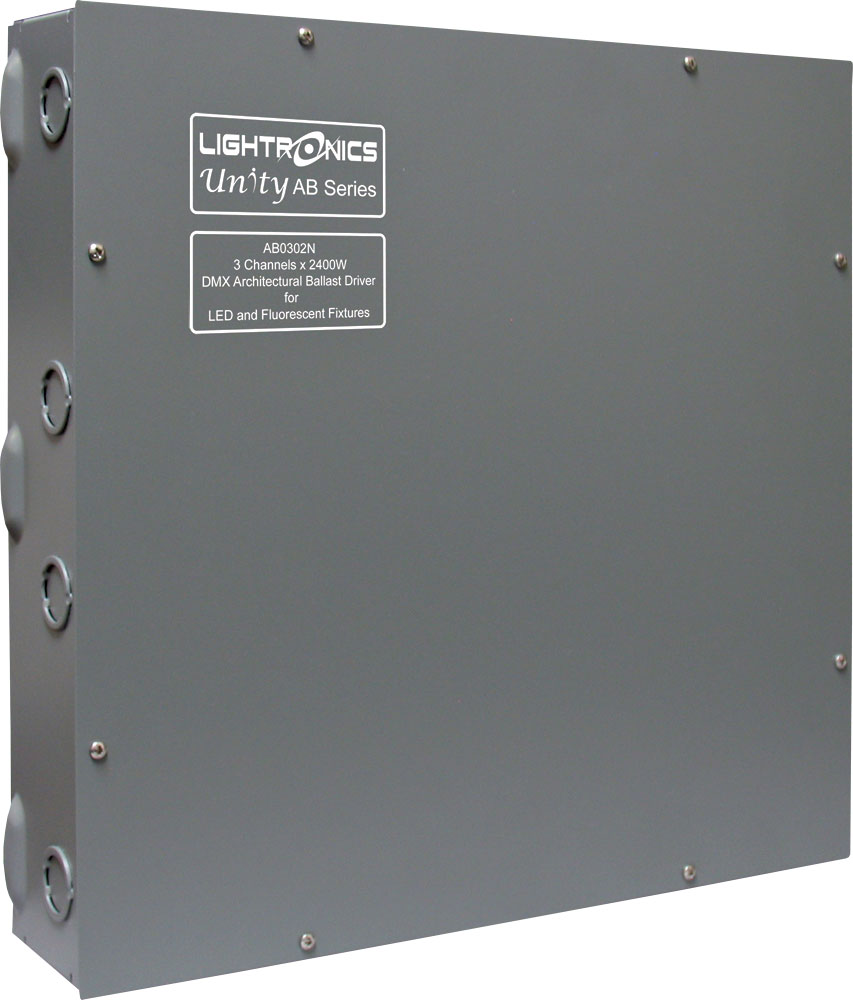

The Lightronics AB0302N is a non-dim (relay contact), switched HOT relay interface ballast driver designed for DMX-512 operation and for integration into Lightronics Unity Architectural Lighting Control systems. Installed between the control system and lighting loads, it provides centralized on/off control of connected circuits through Unity Architectural remote stations, DMX-512 control input, or contact closures. This configuration supports reliable switched power control of non-dimmable lighting and other 120V devices.

Key Features
 • 3 control channels, 2,400W per channel (7,200W total)
 • Relay contact output with switched HOT control
 • Compatible with Unity Architectural Lighting Control systems
 • Supports Unity Architectural remote station control
 • Supports DMX-512 control input
 • Programmable for up to 64 preset lighting scenes
 • Softpatch capability for flexible channel assignment
 • Contact closure inputs for external control integration
 • Nonvolatile memory retains scenes when powered down

Users can quickly recall preset lighting scenes while maintaining simple control through Unity Architectural wall stations or DMX-512 input. This allows consistent, repeatable operation in environments where ease of use is essential. In addition, the relay-based, non-dimming design makes the unit ideal for applications where lighting or equipment requires only on/off control.

Integration into existing lighting systems is straightforward. The AB0302N supports Unity Architectural remote stations for simple preset scene control, while DMX-512 allows connection to broader lighting control systems. Softpatching simplifies system setup and addressing, and contact closure inputs expand control options for automated or external triggering. As a result, the unit works well in both new installations and retrofit applications where simple, reliable switching control is required.

Designed for dependable, long-term operation, the AB0302N delivers consistent performance in architectural lighting environments. Its durable construction and relay-based control make it a practical solution for facilities requiring straightforward operation, reliable switching, and long-term system stability.

Comparable Products

• Coming Soon!
